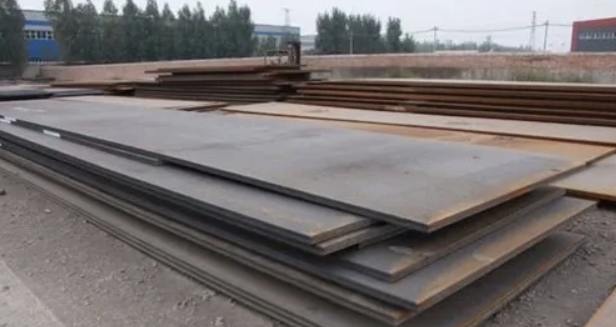

ASTM A516 Gr 70, 65, 60 Steel Plates

Name: ASTM A516 Gr 70, 65, 60 Steel Plates
Brand: R. A. ENTERPRISES
Price: 100 INR
Availability: InStock

Price 100 INR/ Kilograms

Get a Price/Quote

MOQ : 50 Kilograms

ASTM A516 Gr 70, 65, 60 Steel Plates Specification

Purity
High

Dimension (L*W*H)
Custom as per order, Typical: 2500mm x 12000mm x 10mm

Feature
High Strength, Good Weldability, Notch Toughness, Durability

Grade
Gr 70, Gr 65, Gr 60

Application
Boilers, Pressure Vessels, Heat Exchangers, Industrial fabrication

Product Type
Steel Plate

Material
Carbon Steel

Standard
ASTM A516 / ASME SA516

Shape
Plate

Surface
Hot Rolled

Connection
Welded

Technics
Hot Rolled

Pressure
High Pressure

Size
6mm to 300mm Thickness, Width: 1500mm to 3500mm, Length: Up to 12 Meters

Color
Black / Grey

Yield Strength
260 MPa min (Gr 70), 240 MPa min (Gr 65), 220 MPa min (Gr 60)

Test Certificates
EN 10204 3.1 / 3.2

Heat Treatment
Normalized (as required)

Delivery Condition
As Rolled / Normalized

Hardness
Max 200 HB (As per standard)

Corrosion Resistance
Moderate (based on environment and coating)

Thickness Tolerance
+/- 0.3mm

Edge Condition
Mill Edge, Sheared Edge

Tensile Strength
485-620 MPa (Gr 70), 450-585 MPa (Gr 65), 415-550 MPa (Gr 60)

ASTM A516 Gr 70, 65, 60 Steel Plates About

ASME SA-516 Grade 70 is a premier carbon-manganese pressure vessel steel specification optimized for moderate-to-lower temperature service. It provides high tensile strength (485 - 620 MPa) and notch toughness, making it ideal for welded industrial boilers, storage tanks, and petrochemical vessels

Exceptional Strength and Versatility

ASTM A516 steel plates, available in Grades 70, 65, and 60, deliver reliable performance for high-pressure and temperature environments. These plates are widely used in fabricating boilers, pressure vessels, and heat exchangers. Their varied thickness and size options accommodate bespoke industrial requirements, with a focus on durability and mechanical integrity.

Test Certification and Quality Assurance

Each plate undergoes strict quality checks and is supplied with EN 10204 3.1 or 3.2 test certificates, ensuring traceable manufacturing and compliance with international standards. The plates are produced with high purity carbon steel, providing consistent hardness (max 200 HB) and meeting the stringent expectations for safety and structural reliability.

Flexible Supply and Application Range

As manufacturers and suppliers in India, we offer ASTM A516 steel plates with mill or sheared edges, and customizable dimensions. Our plates come in standard black or grey, supporting a range of industrial projects-particularly those where weldable, tough, and high-strength steel is required under demanding conditions.

FAQ's of ASTM A516 Gr 70, 65, 60 Steel Plates:

Q: What are ASTM A516 Gr 70, 65, and 60 steel plates used for?

A: ASTM A516 Gr 70, 65, and 60 steel plates are primarily used in the fabrication of boilers, pressure vessels, and heat exchangers, as well as various industrial fabrication projects requiring robust and reliable performance in high-pressure environments.

Q: How are the yield and tensile strengths different among Gr 70, Gr 65, and Gr 60?

A: The minimum yield strength varies by grade: Gr 70 offers 260 MPa, Gr 65 offers 240 MPa, and Gr 60 offers 220 MPa. For tensile strength, Gr 70 ranges from 485-620 MPa, Gr 65 from 450-585 MPa, and Gr 60 from 415-550 MPa, providing tailored options for different pressure and structural requirements.

Q: What certification and test reports are provided with these steel plates?

A: Plates are supplied with EN 10204 3.1 or 3.2 certification, which details the chemical composition, mechanical properties, and testing results, ensuring full compliance and traceability as per industry standards.

Q: When is heat treatment required for ASTM A516 steel plates?

A: Heat treatment, such as normalization, is applied as required by the customer's specifications or project demands, particularly when enhanced notch toughness and improved mechanical properties are needed.

Q: Where are these steel plates typically sourced and manufactured?

A: We manufacture and supply ASTM A516 steel plates in India, servicing both domestic and international clients across multiple industries that require high-pressure vessel grade steel.

Q: What edge and surface conditions are available for these plates?

A: The steel plates can be supplied with either mill or sheared edges and are finished as hot rolled with a black or grey surface, accommodating various fabrication preferences and aesthetic requirements.

Q: What benefits do ASTM A516 plates offer in industrial applications?

A: These plates provide high strength, notch toughness, good weldability, and durability, making them the preferred choice for safe, long-lasting performance in pressure-bound and structural systems.
